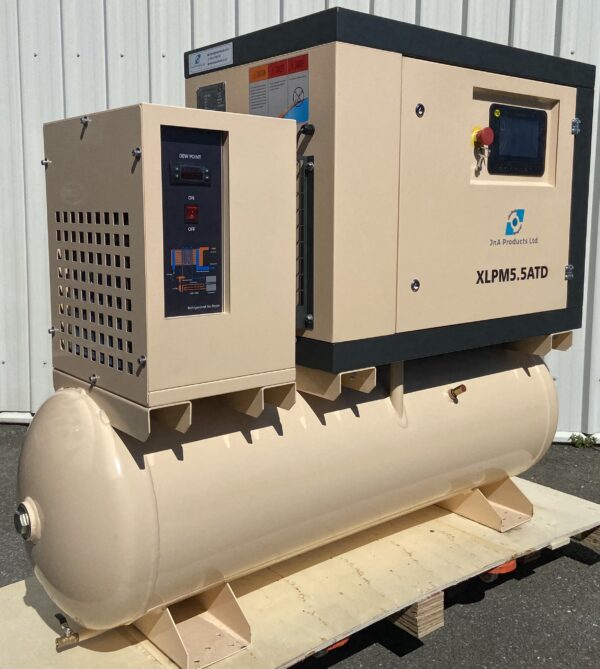

Description JnA Products JNA-XLPM5.5ATD In stock ready for dispatch in 1-2weeks – Please contact us for freight costs The All-in-one Oil injected Rotary screw compressor Direct drive, not belts, no slip, less maintenance. Designed to operate 24/7. The clever all-in-one design reduces installation time and cost with the additional benefits of a small footprint and super quite operation installation can be made closer to the point of use. Efficient, VSD (Variable speed) direct drive can offer up to 30% less energy consumption over a standard piston type compressors of the same output. VSD will engage the drive in a soft start manner reducing wear during starting phase VSD will rotate the compressor at the desired RPM to maintain continuous output depending on the demand. The ability to run at 50% to 100% duty cycle Simple Control, Touch screen display allows the compressor to be setup how the customer wants to operate. Wifi enabled for remote monitoring and control. Reverse phase protection, Track maintenance on screen Reduced maintenance, All units use all steel oil and air lines, no more rubber leaking hoses. Oil cooling of the air end, the oil & air is cooled via two core radiator temperature controlled through is own fan Refrigerated air drier units are sized to the compressor to deliver clean, dry air. (additional optional filtration available) Displacement / Discharge pressure: 100psi/7Bar- 100% 0.56M3/min, 560L/min, 20CFM down to 50% 0.28M3/m, 280L/min, 10CFM 116psi/8Bar- 100% 0.53M3/min, 530L/min,  19CFM down to 50% 0.26M3/min, 260L/min, 9.5CFM 145psi/10Bar- 100% 0.45M3/min, 450L/min,  16CFM down to 50% 0.22M3/min, 220L/min, 8CFM Screw Drive Motor: 4KW (5.5HP) Screw Voltage: 3 Phase, 400 Volts, 50 Hz (also available in single phase) Dryer Voltage: Single phase, 230Volts, 50 Hz Cooling: Oil Drive mode: Direct drive Starting mode : Frequency conversion Main holding tank: 200L Air dryer: Refrigerated Noise: 64dB ( /-4dB) Air outlet diameter: 1/2″ Variable speed drive ( VSD ) Dimensions: L1500mm, W540mm, H1250mm Net Weight: 190kg We hold spare parts in stock and provide after sales servicing 12 month (extended warranty up to 3 years/ 6600 hours available with conditions) return to base warranty, terms and conditions apply Price includes GST, GST invoice will be supplied. Freight options do not include Rural delivery, please enquire.
