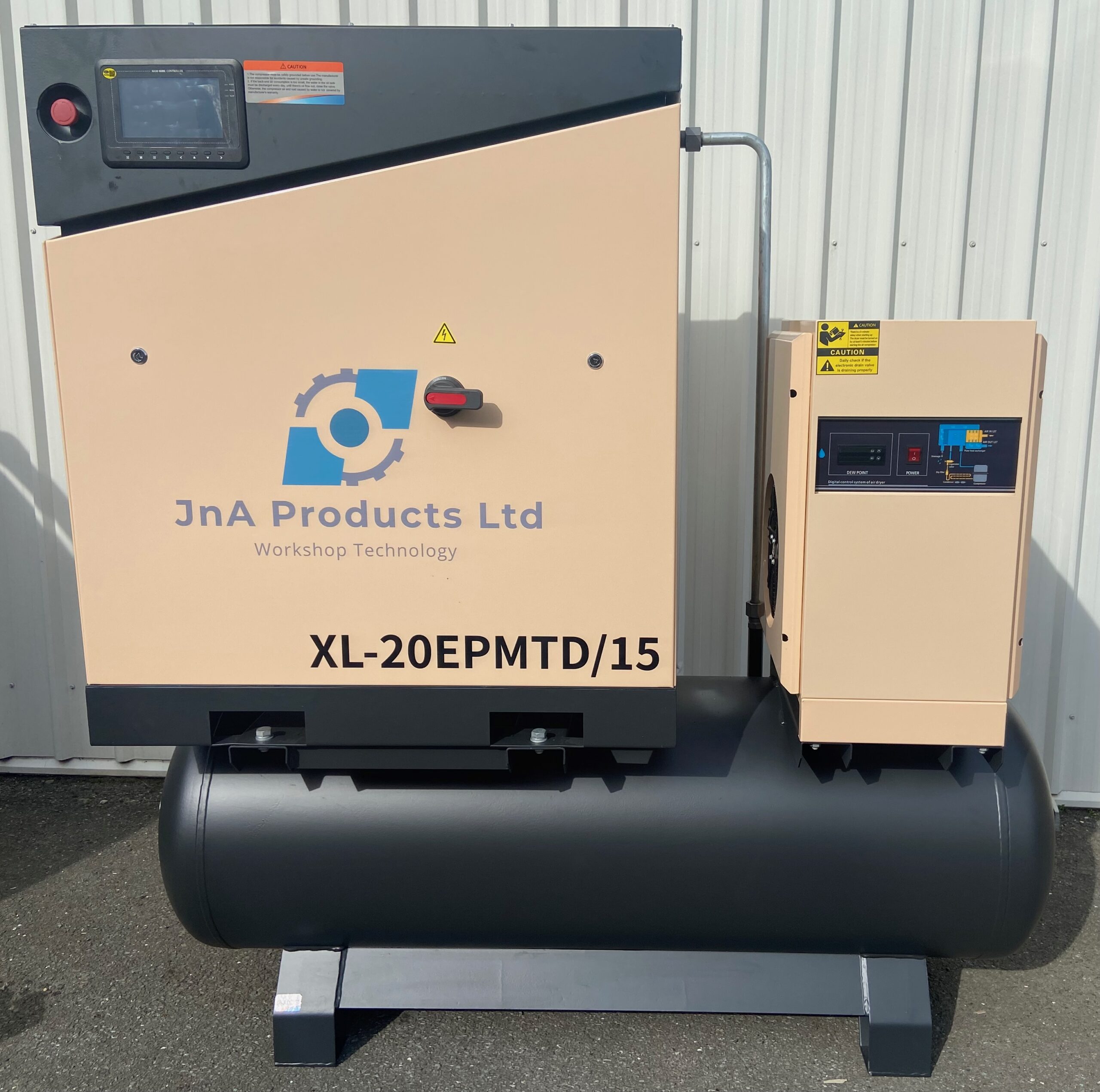

Description JnA Products JNA-XL-20EPMTD/15 In stock ready for dispatch in 1-2weeks – Please contact us for freight costs The All-in-one Oil injected Rotary screw compressor 220psi/ 15Bar. Ideal for Fibre Laser Cutters, reducing bottled gas requirements on cuts that can be completed on compressed air up to 220psi and 1.4M3/min Direct drive, not belts, no slip, less maintenance Efficient, VSD (Variable speed) direct drive can offer up to 30% less energy consumption over a standard piston type compressors of the same output VSD will engage the drive in a soft start manner reducing wear during starting phase VSD will rotate the compressor at the desired RPM to maintain continuous output depending on the demand. The ability to run at 30% to 100% duty cycle Simple Control, Touch screen display allows the compressor to be setup how the customer wants to operate Reverse phase protection, Track maintenance on screen Reduced maintenance, All units use all steel oil and air lines, no more rubber leaking hoses. Oil cooling of the air end, the oil & air is cooled via two core radiator temperature controlled through is own VSD fan Refrigerated air drier units are sized to the compressor to deliver clean, dry air. Displacement / Discharge pressure: 220PSI- 100% 1.4M3/min, 1400L/min, 49 CFM down to 30% 0.42M3.Min, 420L/min, 14.8CFM Screw Drive Motor: 15KW (20HP) Screw Voltage: 3 Phase, 400 Volts, 50 Hz Dryer Voltage: Single phase, 230Volts, 50 Hz Rated input power: 19KW Cooling: Oil Drive mode: Direct drive Starting mode : Frequency conversion Main holding tank: 410L Air dryer: Refrigerated Noise: 64dB ( /-4dB) Air outlet diameter: 3/4″ Variable speed drive ( VSD ) Dimensions: L1750mm, W820mm, H1890mm Net Weight: 530kg Additional filtration maybe required, a range of filters are held in stock, please enquire We hold spare parts in stock and provide after sales servicing 12 month (extended warranty up to 3 years/ 6600 hours available with conditions) return to base warranty, terms and conditions apply Price includes GST, GST invoice will be supplied. Freight options do not include Rural delivery, please enquire.
